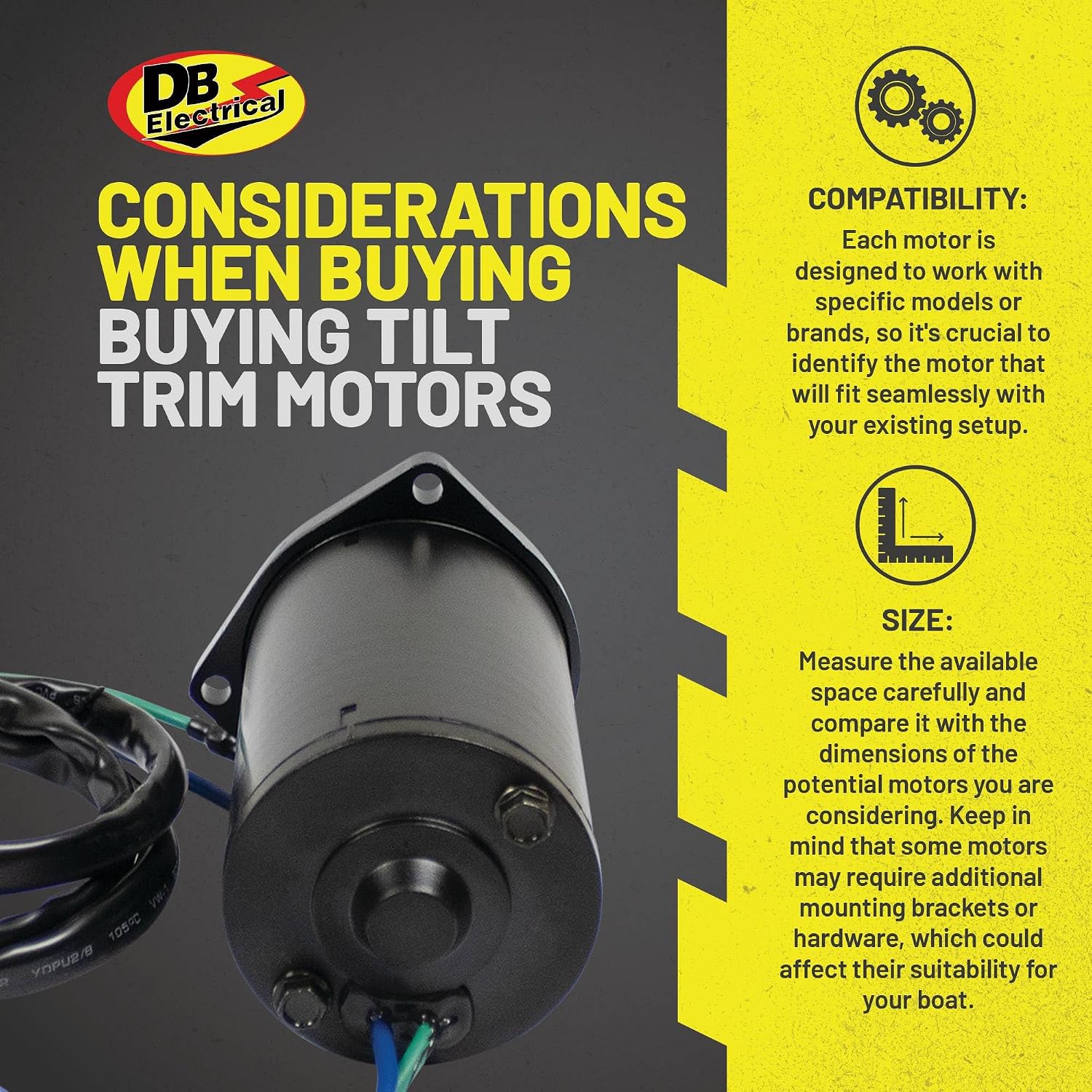

DB Electrical 430-22048 Tilt Trim Motor Compatible with/Replacement for Yamaha 40-50 HP 1995-2001 62X-43880-001995-2001 - Short Shaft, Tilt and Trim for Outboard Motor, Black and Silver

DB Electrical Whatever you drive, we have the part for it! DB Electrical is your go-to source for quality electrical parts for vehicles of every kind – from motorcycles and ATVs to cars, trucks, and boats. Our engineers closely partner with leading factories to develop electrical components that perform and fit OEM standards. Selling from the heartland of America located in Kingsport, Tennessee, DB Electrical's goal is to get your vehicle back on the road, field, trail, or water. We take great pride in providing top-quality products that keep you moving forward. DB Electrical TRM0060 Tilt Trim Motor for Yamaha Specs: -Unit Type: Tilt & Trim Motor -Voltage: 12 -Fits: Tilt Motor for Yamaha Outboard. same as our 430-22090, except the shaft is shorter -Rotation: Reversible -Field Hsg OD: 63.6mm / 2.504in -Overall Length: 120.4mm / 4.740in -Shaft OD: 7.9mm / 0.311in -Shaft Notes: 4mm X 8mm Drive Tang -Approximate Weight: 2.68 lbs / 1.22 kg Replaces OEM Numbers: API Marine: PT611NM Arco Marine: 6266 Arrowhead: TRM0060 Barsanco: 540-10833 EMS: 49-6226 EMP Parts: 4-6789 J & N: 430-22048 Lester: 10833 Mallory: 9-18401 MES MOTORCYCLE & MARINE: Minnpar: 67-3141 MP Parts: 4-1262 PIC: 107-133 Quicksilver: 8M6007573 Remy Small Motor: RT05042 Sierra Marine: 18-6789 WAI: 10833N Wilson Small Engine: 74-35-10833 Yamaha: 62X-43880-00-00, 62X-43880-01-00, 62X-43880-09-00 Compatible With/Replacement For: YAMAHA 40EJR 1995-1999, 40ELR 1995-1998, 40ESR 1995-1999, 40MJH 1995-1999, 40MJH 2000-2000, 40MLH 1995-1999, 40MLH 2000-2000, 40MSH 1995-1999, 40TLH 1996-1997, 40TLR 1995-1999, 40TLR 2000-2000, 50EJR 1995-1999, 50EJR 2000-2000, 50ELR 1995-1995, 50ELR 1997-1998, 50TLH 1995-1997, 50TLR 1996-1997, C40TLR 1997-1999, C40TLR 2000-2000, C40TLR 2001-2001, C50TLR 1998-2001, F40TLR 1999-1999, F50TLH 1996-1998, F50TLR 1996-1999, F50TLR 2000-2000, P40TLH 1998-1998, P50TLR 1995-1996, T50TLR 1996-1998, T50TLR 2000-2000 *Verify part fits before purchasing

• Specs: Tilt & Trim Motor, Voltage: 12, Rotation: RE, Dimension: Replacement Unit:, OD: 2.504in / 63.6mm, Shaft OD: 0.311in / 7.9mm, Shaft Length: 4mm, Length: 4.74in / 120.4mm, Shaft: 4mm X 8mm Drive Tang, Brief: Yamaha 40-50HP Outboard Motors 1995-01
• Replaces OEM Numbers: API MARINE: PT611NM, ARCO MARINE: 6266, ARROWHEAD: TRM0060, EMP UnitS: 4-6789, J & N: 430-22048, LESTER: 10833, QUICKSILVER: 8M6007573, SIERRA MARINE: 18-6789, WAI: 10833N, Yamaha: 62X-43880-00-00, 62X-43880-01-00, 62X-43880-09-00
• Compatible With/Replacement For: YAMAHA 40EJR 1995-1999, 40ELR 1995-1998, 40ESR 1995-1999, 40MJH 1995-1999, 40MJH 2000-2000, 40MLH 1995-1999, 40MLH 2000-2000, 40MSH 1995-1999, 40TLH 1996-1997, 40TLR 1995-1999, 40TLR 2000-2000, 50EJR 1995-1999, 50EJR 2000-2000, 50ELR 1995-1995, 50ELR 1997-1998, 50TLH 1995-1997, 50TLR 1996-1997, C40TLR 1997-1999, C40TLR 2000-2000, C40TLR 2001-2001, C50TLR 1998-2001, F40TLR 1999-1999, F50TLH 1996-1998, F50TLR 1996-1999, F50TLR 2000-2000
• 1-year warranty protects you after your purchase. We're confident that our products will work flawlessly once installed in your vehicle. But in a rare case that it does not, we'll replace it anytime within one year of your order. If you have a problem, we will take every step to assist you, contact us for a replacement.
• 100% New Aftermarket Tilt & Trim Motor built to meet OEM specifications
